# Membrane Switch Design Guide
#### Membrane Switch Design
Today's marketplace demands fast, accurate, and reliable human-machine interface solutions. Before you develop your application, consider the expectations of your clients: ease of use, satisfactory tactile response, and rapid functionality.
To ensure a successful application, it is important to focus carefully on the design of your membrane switch. Our design engineers are available to help you identify and achieve criteria specific to your needs.
The following information outlines membrane switch components and related design considerations. By walking through the design factors related to each membrane switch component, you will be able to maximize the quality, reliability, and efficiency of your membrane switch.
#### Types of Switches
Membrane switches are characterized as tactile and non-tactile. Both can be constructed with or without a graphic overlay. The variation comes in the presence or lack of a dome.
Tactile switches are designed to include a metal dome or poly dome. The dome allows operators to experience feedback in the form of a physical “snap,” which confirms for the user that the button has been depressed.
Non-tactile switches do not have a metal dome or poly dome; therefore, non-tactile switches do not provide any type of physical feedback when the push button has been depressed.
#### Construction

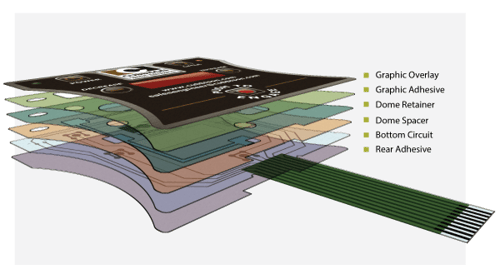

A typical membrane switch construction consists of the following layers:
**Graphic Overlay**
**Graphic Adhesive**
**Dome Retainer **(top circuit for matrix circuit configuration)
**Dome Spacer **(used with metal domes)
**Bottom Circuit**
**Rear Adhesive**
To discuss design constructions that will best suit your needs, email [salesengineer@cubbison.com](mailto:salesengineer@cubbison.com).
**Graphic Overlay**
Circuitry configuration uses either a common bus, a matrix, or a combination of the two.
The connection from the membrane switch to the printed circuit board (PCB) can be made one of three ways.
- cable interconnect or tail that is terminated with bare contacts
- plastic connector housing
- solder tabs
The tail termination pitch can be 2.54mm, 1.27mm, 1.00mm, or 0.5mm. Metal tines are used for electrical connections.
**Prepress**
Our full-service art department can provide membrane switch design services if you do not have existing artwork. One of our expert design engineers will work with you to customize the design and construction of a membrane switch that is ideal for your application.
We can also help you determine the printing option that will be most effective for your intended printed electronics application: screen printing, digital printing, or a combination of screen and digital printing.
#### **Customer-Supplied Requirements**
*Artwork:*
- native (original program) editable vector image file (i.e. Illustrator .ai file)
- fonts supplied or outlined
- legible blueprint or layout (i.e. .dwg or a .dxf file; and hardcopy or physical sample)
*Other requirements:*
- dimensions (overall size, and if applicable, the round corner radius)
- dimensions of the copy and graphic location within the layout, if necessary, as well as text point size
- PMS colors (graphics, lines, and background)
- sizes, location, and dimensions of thru cuts and clear windows
*Acceptable software files:*
- .AI – Adobe Illustrator CS6 (or previous versions)
- .EPS
- .PDF (from native PDF conversion such as via Adobe, AutoDesk, etc.)
- .DXF or .DWG (via CAD, SolidWorks or MicroStation)
- .TIFF – Raster files set to 300 dpi (used for digital printing only)
#### **Material Selection**
We offer a variety of hard-coated, textured-polyester and polycarbonate films. These substrates are designed specifically for the graphic overlay film on membrane switches. Finish options range from high-gloss to velvet-matte. All film options are solvent and resistant to chemicals and scratches. They can also be screen printed onto a second surface.
Polyester is the most popular film choice because of its robust nature and superior chemical resistance. Polyester also supports up to 5 million actuations over its lifetime, as opposed to polycarbonate, which is rated for up to 100,000 actuations.
For additional information, please email [salesengineer@cubbison.com](mailto:salesengineer@cubbison.com).
#### **Color Matching**
The Pantone Matching System ([www.pantone.com](http://www.pantone.com)) is the most popular color matching system for graphic arts applications. With our digital presses, we can match Pantone, custom, and transparent colors.
With our state-of-the-art X-rite Ci7600 spectrophotometer, we can successfully match printed overlay colors to surrounding components, an otherwise challenging task. Once we identify a control color for matching, we can achieve a color match under 1.0 delta in the CIE Lab color space. We are also able to conduct transmission and density readings.
#### **Embossing**
We can produce pillow (pad) or rim (perimeter) key tactile designs into polyester or polycarbonate overlays. The overlay embossing process requires a male/female die set that can be manufactured with sophisticated tolerances to allow for material flow. Our design staff can precision-calculate a die for your particular membrane switch application.
#### **Windows**
Display windows are typically transparent and can be either clear or color-tinted. LED windows can be translucent or transparent (with or without color).
A transparent color is optically clear and useful in filtering backlight displays. It also reduces a display's "blooming effect."
A translucent color is typically used to diffuse an indicator light or to backlight printed graphics, such as a backlit instrument cluster.
#### **Selective Surface Texture: Hard Coat**
We offer hard-coat films that are ideal for membrane switch overlay applications. These hard-coat films are polycarbonate and polyester substrates that have been treated so that their surfaces can be selectively textured, embossed, or printed with UV inks. Finish options range from glossy clear to textured matte black. A selection of hard-coat films are also available for displays.
Hard-coat films are valuable because of their resistance to scratches, food stains, and the detrimental impact of household cleaners and aggressive chemicals. For medical equipment and other special applications, hard-coat films can be embossed or otherwise thermoformed without sacrificing performance characteristics.
We can print state-of-the-art UV inks specifically designed to provide decorative texture on first-surface polyester or polycarbonate membrane switch overlays. UV inks create extremely durable textures that will withstand marring and other challenging environmental factors.
Texture coats range from very fine to coarse, and if you have an existing texture, we can customize a match.
#### **Circuit Design**
Circuitry design relies on a common bus or matrix configuration, or a combination of the two. The connection from the membrane switch to the PCB is made via a cable interconnect, or “tail” that is terminated with bare contacts, a plastic connector housing, or solder tabs.
The tail termination pitch can be 2.54mm, 1.27mm, 1.00mm, or 0.5mm. The tail can exit from either an edge or inset location of the part, but not from the button area.
We offer a variety of heat-stabilized polyester films that meet high-stability specifications. These films are designed to be screen printed with conductive silver and/or carbon inks, graphite inks, and dielectric inks.
#### **Backlighting Options**
- LED: Surface mounted LED's are embedded into the membrane switch; pick-and-place equipment is used to mount the LEDs onto the circuit layer. LED backlighting, which is used primarily for indication and single point illumination, is the least expensive backlighting option.
- Fiber Optic: A fiber-optic layer can be incorporated into the membrane switch when even, uniform lighting is required.
- Light Guide: The light-guide film is effective when you need uniform backlighting.
#### **Shielding Options**
ESD, RFI/EMI, the most common types of shielding, are printed using carbon ink or silver ink, or by using solid aluminum foil.
Printing with carbon ink is the most cost-effective is the least expensive shielding option. Aluminum foil, on the other hand, has advantages if a printed top circuit is not specified.
A shield can be terminated by either a conductive trace routed to the connector or with a ground strap cut from the polyester material. Our design engineers will help you determine your best shielding solution.
#### **Metal Dome Design Considerations**
Metal dome design options for tactile switches include 4-legged and oblong domes.
*Typical characteristics of 4-legged domes:*
- activation forces are available from 85g to 2000g
- available with life expectancy of up to 3 million actuations
- sizes range from 11.2mm up to 25.0mm in diameter
*Typical characteristics of oblong domes: *
- activation forces are available from 230g to 450g
- available with life expectancy of up to 3 million actuations
- sizes range from 11.2mm up to 50.8mm in diameter
#### **Connectors** We are tooled for Nicomatic and Amphenol FCI (Berg) plastic connector housings.
#### **Venting**
When a switch is deflected, it must be designed to include a small track that is connected to all of the switch keys. This track allows air to be displaced. When venting is done internally, the switch remains sealed. For this reason, external venting is not recommended.
#### **Backer/Sub-panel**
We offer aluminum, polycarbonate, and acrylic material options for a rigid sub-panel.
It is usually advisable for the sub-panel to be slightly smaller than the membrane switch. Conversely, the holes and cutouts should be slightly larger than those on the membrane switch, in order to conceal the sub-panel.
If needed, we can laser fabricate a sub-panel to your specifications.
#### **NEMA 4 Gasket**
The NEMA 4 gasket feature increases the protection of a membrane switch against environmental factors, such as dirt and moisture.
#### **Membrane Switch Operational Characteristics**
*Mechanical:*
- 0.010" to 0.030"
- 1 to 10 milliseconds
- 6 oz. to 18 oz.
- contact bounce
- life expectancy
- more than 1,000,000 actuations
- force range
- switch travel
*Electrical:*
- contact rating
- circuit resistance (on)
- circuit resistance (off)
- current
- power
- voltage
*Configuration:*
- 20mA at 30 Volts DC
- 10M Ohms
- 100 Ohms or Less
- 100mA (max.)
- 50 volts DC (max.)
- 1.5 watts (max.)
- SPST normally open
*Environmental:*
- **Storage Temperature:** -40 to +80 degrees Celsius
- **Operating Temperature:** -30 to +70 degrees Celsius
#### **Membrane Switch Glossary of Terms**
Voltage: Voltage is the difference in electrical potential between two points in an electrical or electronic circuit, expressed in volts; Voltage measures the potential energy of an electric field to cause an electric current in an electrical conductor. It is the measure of pressure under which electricity flows.
Dielectric: Dielectric refers to a non-conducting substance, i.e. an insulator. Although "dielectric" and "insulator" are generally considered synonymous, the term "dielectric" is more often used when considering the effect of alternating electric fields on the substance, while "insulator" is more often used when the material is being used to withstand a high electric field.
Optical fiber: Optical fiber is a thin glass strand designed for light transmission. A single hair-thin, optical fiber is capable of transmitting trillions of bits per second.
ESD (electrostatic discharge): ESD is the rapid, sudden transfer of electrostatic charge between two electrically charged surfaces.
RFI (radio frequency interference): RFI is interference or “noise” that adversely affects the operation of an electrical circuit. RFI is limited to the radio frequency spectrum.
EMI (electromagnetic interference): EMI is interference or “noise” that adversely affects the operation of an electrical circuit. EMI encompasses all frequencies of electrical noise.
Light-guide film (LGF): LGF is a patterned film that uses LED’s to guide light along the patterned surface.
Embossing: Embossing adds a raised surface to a graphic overlay. It is typically applied to a pushbutton. Embossing is also used for a poly-dome layer.
